3-way motorized ball valves

3-way motorized ball valves series 66-EM are specifically designed to be suitable for CO2 transcritical and subcritical systems with maximum working pressure up to 140 bar.

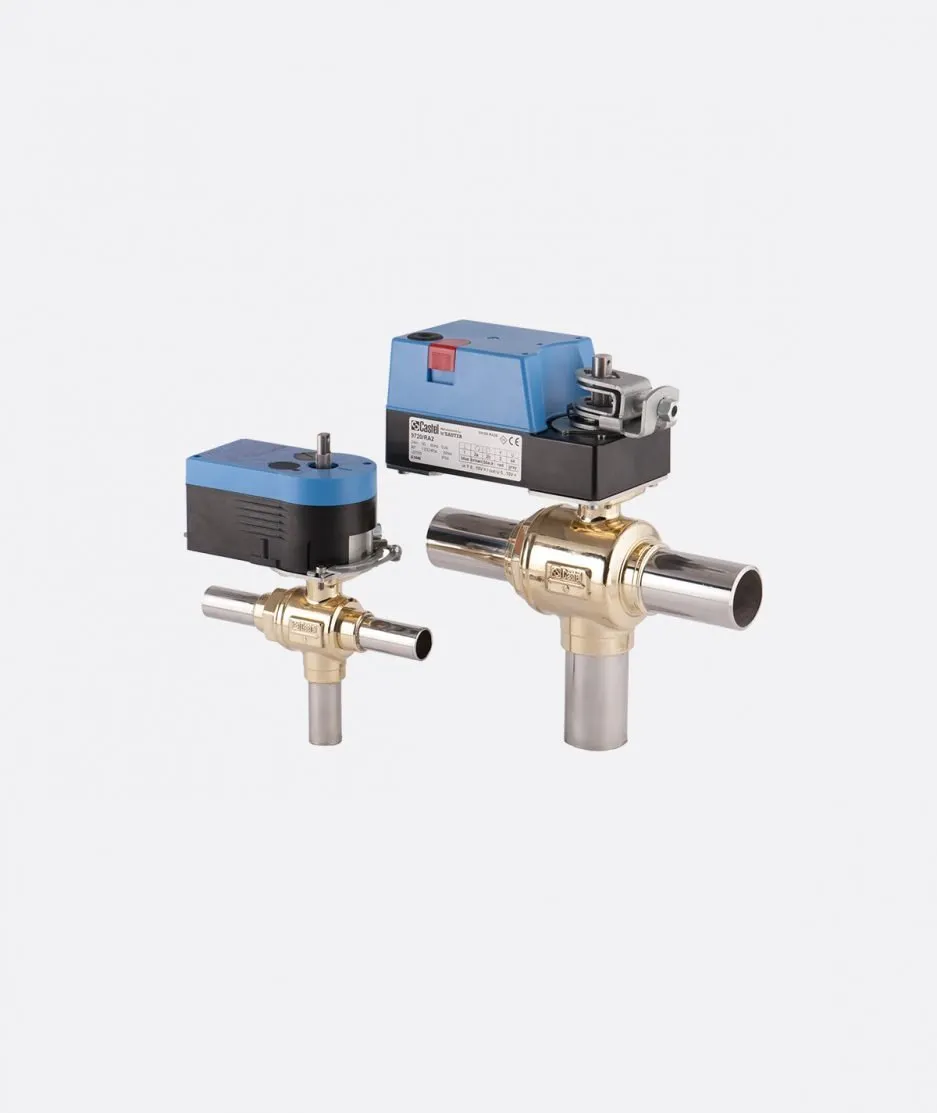

Castel 3-Way Motorized Ball Valves

  • 3-way motorized ball valves series 66_EM regulate the flow of refrigerant by modulating or ON/OFF the opening and closure of the valve thank an actuator
  • Valve include a flanged adapter which allows coupling of the valve to a specific electrical actuator

Advantages

  • Ensures the internal equilibrium of pressures when the valve is closed
  • Prevents any risk of ejection or explosion of the spindle
  • The welding of the body and the seals gaskets, assembled on the spindle, prevent any leaks

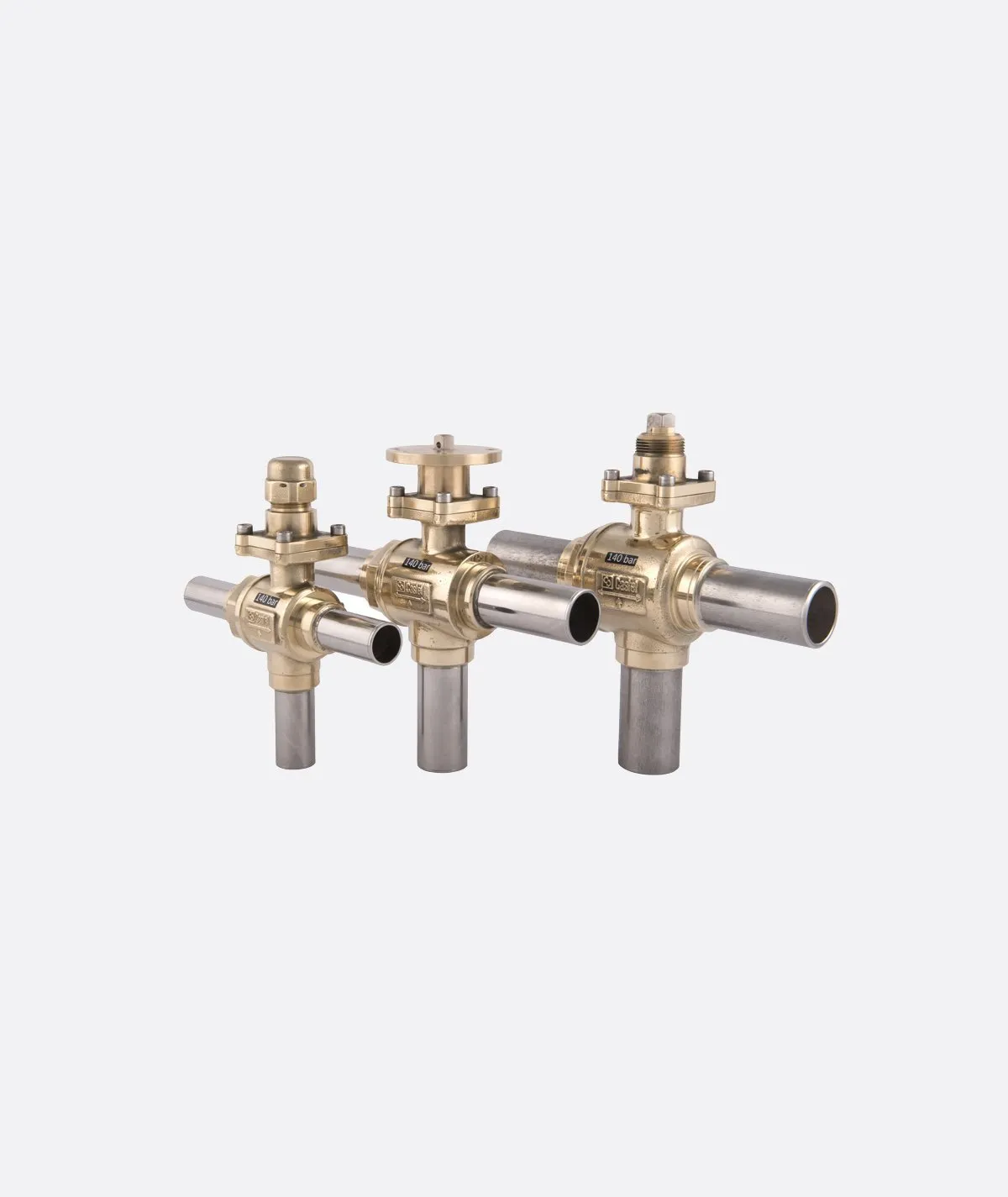

3-Way Motorized Ball Valves Models:

  • Series 6690EM with PS = 80 bar, copper connections equipped for transcritical systems low pressure side and medium pressure side
  • Connections from 22mm to 42mm
  • Series 6697EM with PS = 120 bar, reinforced copper connections (K65) equipped for transcritical systems high pressure side
  • Connections from 7/8” to 1.5/8”
  • Series 6598EM with PS = 140 bar, stainless steel connections equipped for transcritical systems high pressure side
  • Connections from 22mm to 42,2mm

System Specifications:
Connections: 7/8” to 1.5/8”
MWP (maximum working pressure): up to 140 bar
TS min / TS Max: -40°C / 150°C
Actuators : 24Vac on/off and 0-10V, 230Vac on/off
