Castel
Ball Valve 6570N Series
The Ball Valve 6570N Series from Castel is designed for the use with R290, R600 and R600a.
Castel
Company profile

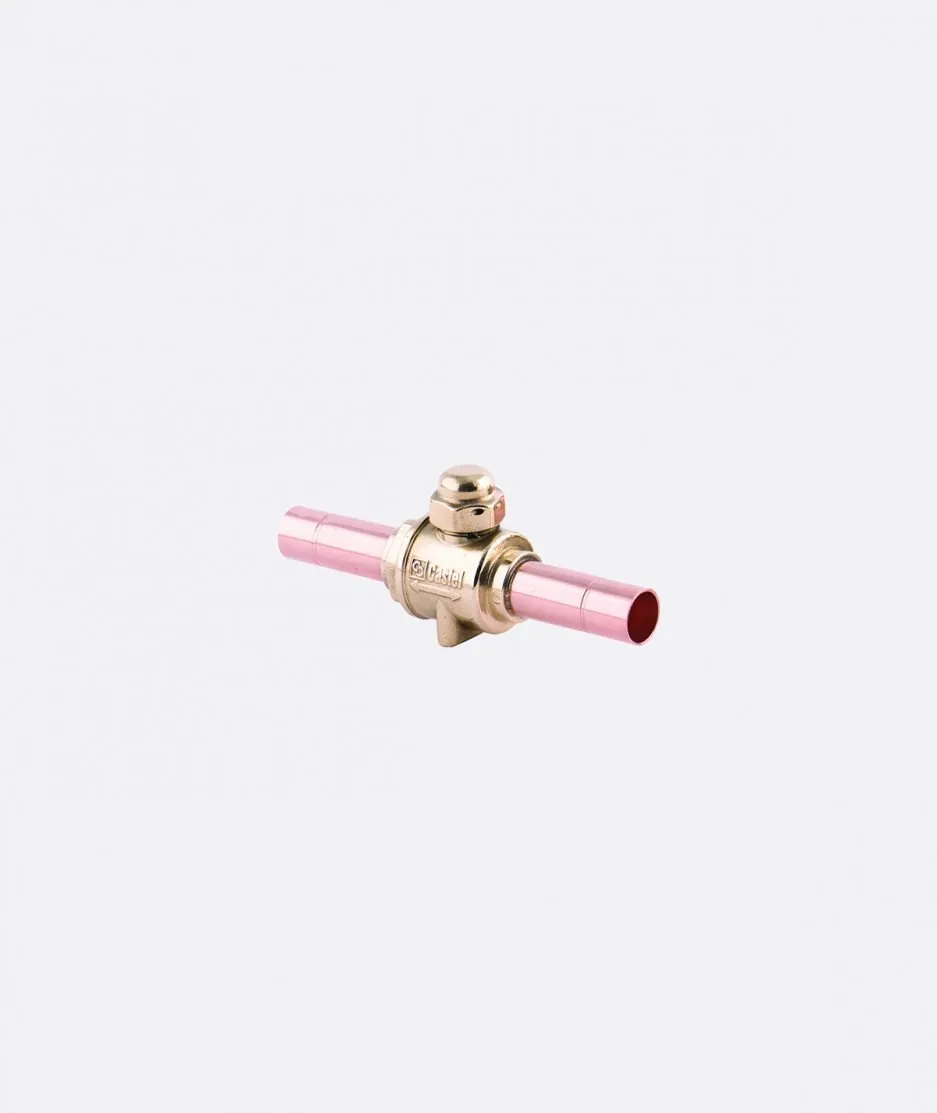

Fig. 01 — Castel Ball Valve 6570N Series
01 Overview
The ball valve has a perfect hermetic seal and can be installed anywhere in a refrigeration system in compliance with its limits and capacities.
01
Basic specifications for the Castel ball valve 6570N series
- Ball Valve for refrigerants R290, R600 and R600a
- Electric welding of body and seal gasket
Made of the following materials
Hot forged brass EN 12420 – CW 617N for the body, protective cap of the spindle and the ball (the ball is chromium plated)- Copper pipe EN 12735-1 – Cu – DHP for solder connections
- Steel with proper surface protection for the spindle
- Hydrogenated nitrile butadiene rubber (HNBR) for outlet steal gaskets
- P.T.F.E. for the ball seat gaskets
- Full port without charge access
- Soldered copper pipe
02
Castel ball valve Advantages
- Copper pipe can be soldered inside the connections
- Specific design of the Ball Valve 6570N series by Castel:
- Ensures internal pressure equilibrium when tap is closed
- Allows two-directional flow of the refrigerant
- Prevents any risk of explosion or ejection in the spindle
- Can be fitted anywhere in the refrigeration system in compliance with its limits and capacities
03
Application
Refrigeration systems with hydrocarbons R290, R600 and R600a
02 Technical dossier
Specifications
2 data points · as published by Castel
- Refrigerant
- Hydrocarbons
- Category
- Components
01Refrigerant
1 entry
- Refrigerant
- Hydrocarbons
02Certification & markets
1 entry
- Region
- Africa, Asia, Australia & NZ, China, Europe, Global, Japan, North America, South America
