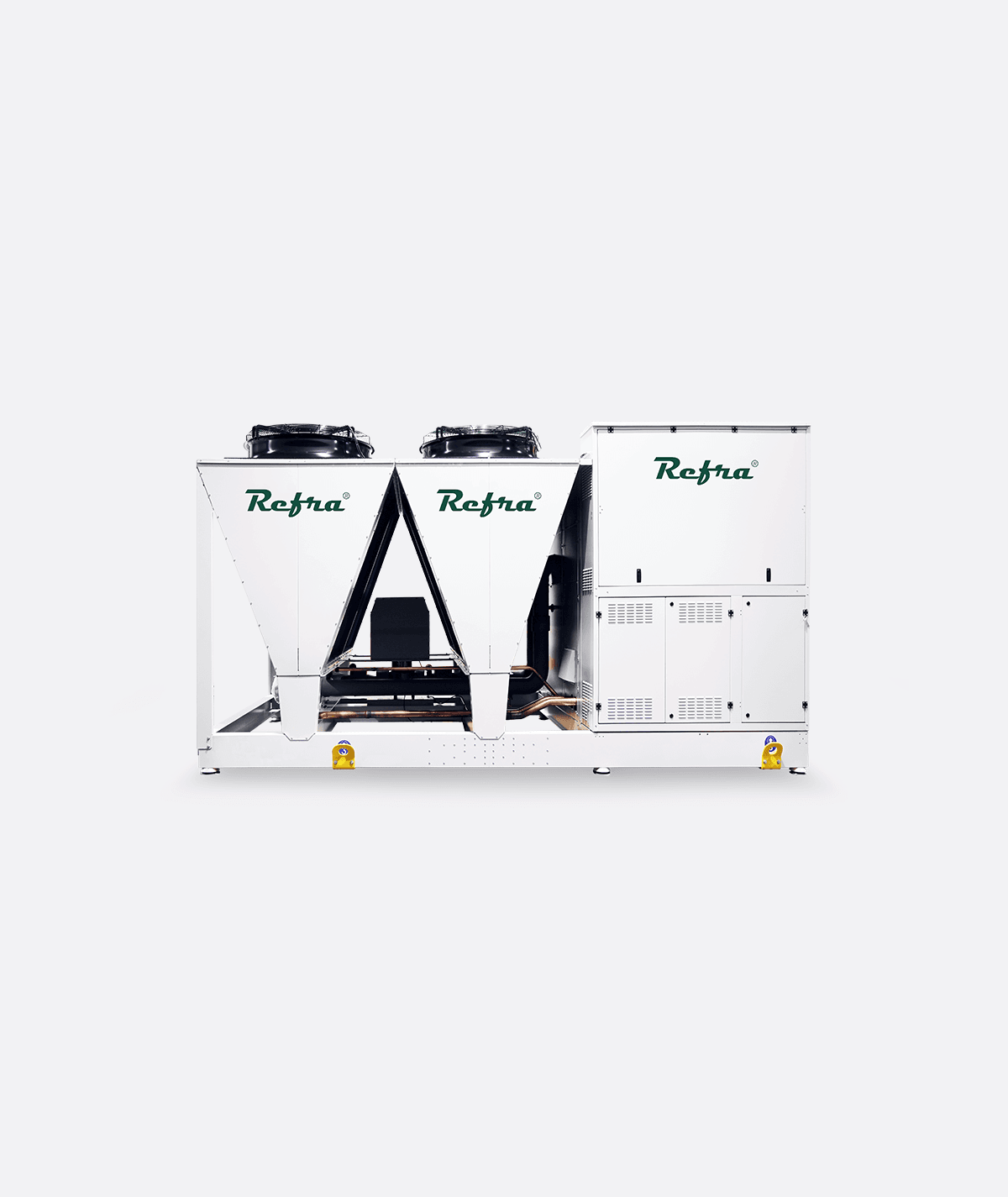

Reversible Propane Heat pump

Refra reversible heat pumps with heating power from 20 kW to 400 kW are designed for various commercial or industrial applications. Manufactured using R290 refrigerant only and full-inverter technology the units are a part of the extremely economical and environmentally friendly Refra product line. Refra manufactures modern devices using plug-and-play ideology, making the installation and use of the devices as easy as possible. In this case, the customer can start using the device quickly and easily after installment. These single circuit heat pumps can be used for heating purposes at an ambient temperature of -15°or higher as well as for cooling purposes with a capacity of 14 kW to 280 kW. This dual solution is very efficient in terms of price, installation, and space, as there is no need to install two separate systems.
Categories: , Tag:

Refra reversible propane heat pumps with heating power from 20 kW to 400 kW are designed for commercial and industrial buildings with low to high power demand. With high cooling/heating capacities and many possible extra features, these products are widely used in various factories, immense supermarkets, and warehouses.  These heat pumps can be designed on various steel frames – from a compact welded frame to a large modular container as long as 13 meters. Frame construction is assembled with high-quality EC fan motor technology, finned tube and/or microchannel heat exchangers, and scroll, reciprocating, or screw compressors. Units can be made with one to three circuits to ensure continuous system operation in case of emergency – if one circuit is damaged, the others can still use the remaining unit capacity to service the end user.

The galvanized steel and powder coated frame with a reliable insulation material ensures proper unit protection and noise reduction. An additional 50 mm rock wool material can be supplemented for a super silent unit operation with double insulation. To prevent ice formation, the frame can be equipped with special water drain outlets or larger, raised coils to simplify the defrosting process and allow water to drain freely. This solution helps avoid additional platform placement costs as you can install the unit directly on the ground.

These units are a part of Refra‘s environmentally friendly product group, as they are made using hydrocarbon refrigerant. Such solutions are designed to have better efficiencies and capacities, as well as less environmental damage. Please note, that these products can be fully customized according to the needs of a customer.


Based on customer request

Frame type

Galvanized steel and powder coated frame with a reliable insulation material or a special walk-in container.

Heating capacity

20 kW to 400 kW

Cooling capacity

14 kW to 280 kW

Compressor type and number

Scroll, reciprocating or screw compressors


Danfoss or Carel controls

Type of piping

Copper, stainless steel


Dual High Pressure and Flash Gas valves
Heat recovery
