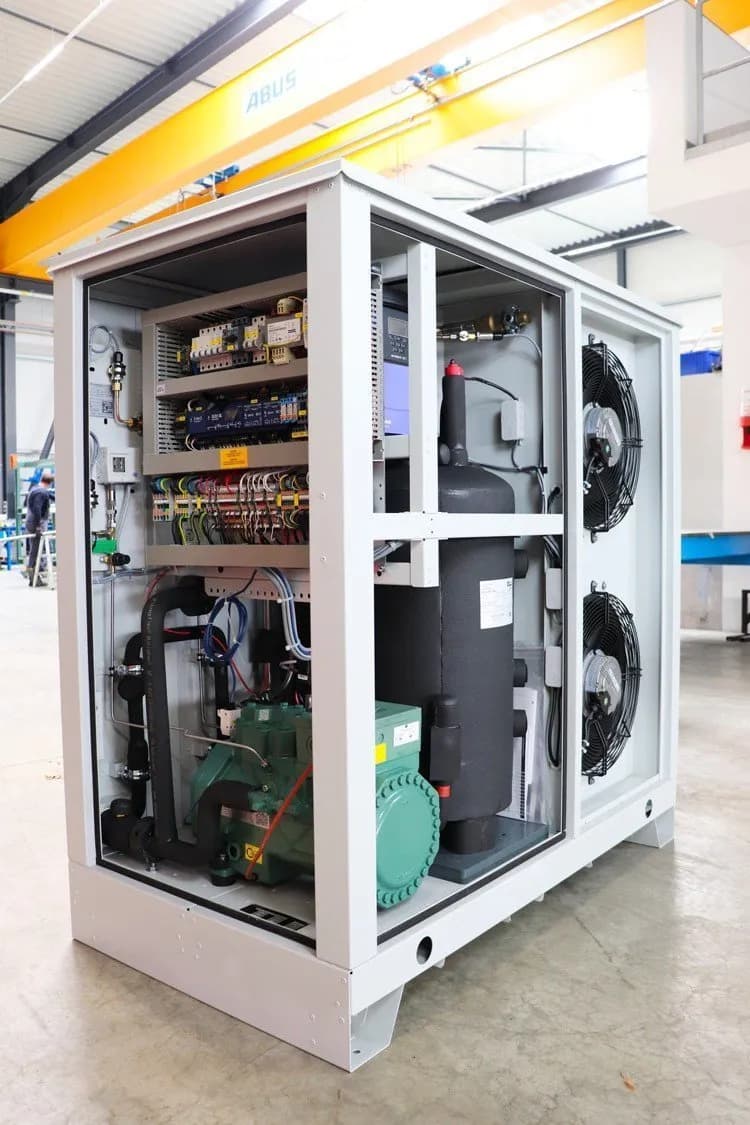

carbo-Box CO2 gas cooler
carbo-Box is the perfect solution for small cooling locations with only one temperature level.
Esta página de producto aún no está disponible en español: se muestra el original en inglés.
Compact Kältetechnik GmbH
Perfil de empresa
01 Resumen
The gas cooler units work in medium temperature refrigeration with a transcritical reciprocating piston compressor, in low temperature refrigeration with a two-stage reciprocating piston compressor. carbo-Box is intended for outdoor installation.
01
The carbo-Box CO₂ gas cooler from Compact enables the use of CO2 in a long proven technology of standardized condensing units.
It is the perfect solution for small cooling locations with only one temperature level. The gas cooler units work in medium temperature refrigeration with a transcritical reciprocating piston compressor, in low temperature refrigeration with a two-stage reciprocating piston compressor.
02
carbo-Box is intended for outdoor installation. Thus you gain space inside the building.
It does not require pipework in sections with 120 bar. This makes installation very easy. Liquid and suction line work on a pressure stage of 52 bar.
03
carbo-Box is equipped with a frequency converter at the compressor. The gas cooler heat is controlled by EC-fans. Sub- and transcritical conditions are thus mastered safely and efficiently.
As a plug-and-play system, including control and safety devices, it is a simple and safe use of CO2.
04
carbo-Box CO2 gas cooler Capacity
MT at -10/38°C / 70 Hz
3 types: 8,8 kW / 12,8 kW / 16,5 kW
LT at -32/38°C / 50 Hz
4 types: 9,6 kW / 13,1 kW / 15,8 kW / 20 kW
Application: Small food markets, 24/7 shops, or for expansion of existing systems
02 Dosier técnico
Especificaciones
3 datos · según lo publicado por Compact Kältetechnik GmbH
- Refrigerante
- CO₂
- Categoría
- Componentes
01Refrigerante
1 entrada
- Refrigerant
- CO₂
02Construcción y dimensiones
1 entrada
- Dimensions
- 1400 x 790 x 1460 mm
03Certificación y mercados
1 entrada
- Region
- Europe
