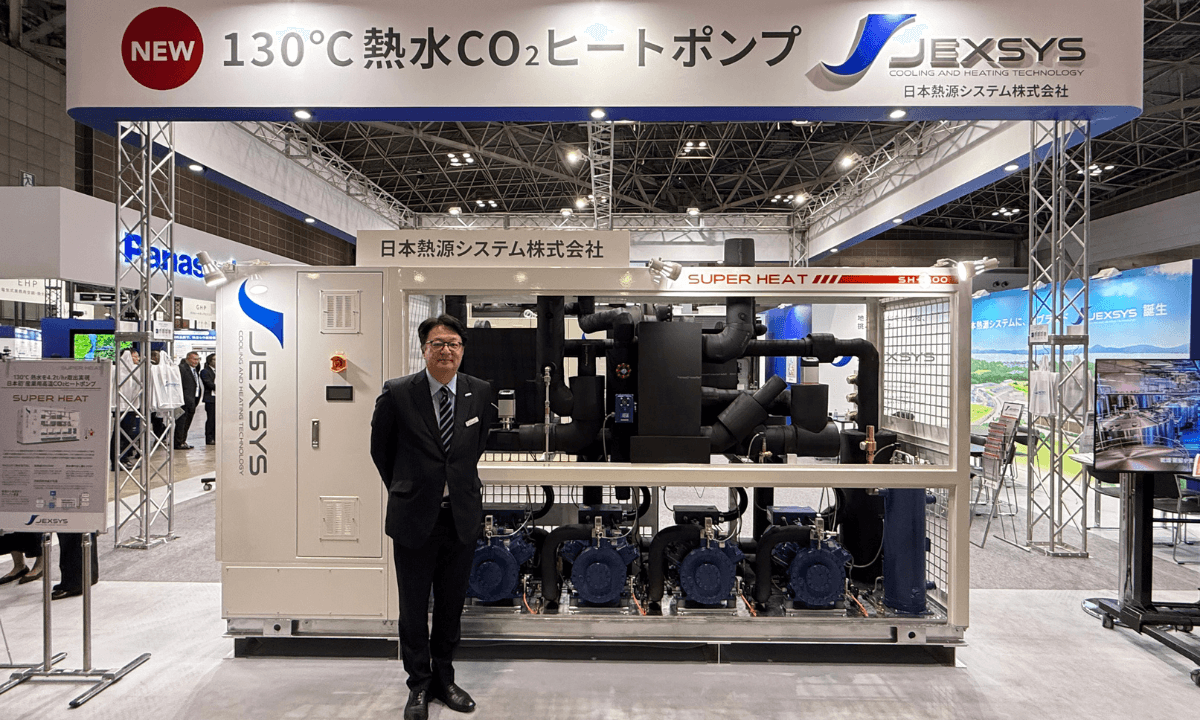

Super Heat Industrial CO₂ Heat Pump
Super Heat is an industrial CO₂ heat pump capable of producing hot water at temperatures up to 130°C.
01 Overview
It can produce 4.2 tonnes of 130°C hot water per hour, making it suitable for industrial processes that require heat above 100°C, such as sterilization and drying. Replacing a boiler with a heat pump can reduce fossil fuel consumption and CO₂ emissions.
01
Large volumes of high-temperature hot water
- Produces hot water at temperatures up to 130°C.
- Produces 4.2 tonnes of 130°C hot water per hour.
- Also operates at lower temperatures, producing 12 tonnes per hour at 60°C or 6.7 tonnes per hour at 90°C.
02
Direct heating from low to high temperatures
- Heats water directly from 18°C to 130°C with a single unit.
- Delivers high-temperature heating that has been difficult to achieve with conventional heat pumps.
03
Simultaneous heating and cooling
- Produces chilled water while supplying hot water at 130°C.
- The chilled water can be used for process cooling or air-conditioning.
- A system configuration is also available for users who do not need chilled water.
04
Energy efficiency
- Achieves a heating COP of 2.8 and a cooling COP of 2.0. When both heating and cooling are used, the combined COP is 4.8.
- Can deliver the same amount of heat as a boiler using less than one-third of the energy.
05
Product lineup
- SH-500: 500 kW
06
Applications
- Pasteurization of beverages and dairy products
- Sterilization of retort food pouches
- Heat source for drying pasta dough and freeze-dried vegetables
- Heat source for wort boiling in beer production
- Heat source for hot-air drying on automotive paint lines
- Hot water and cooling for textile dyeing processes
- Hot water for clean-in-place (CIP) systems
- Industrial parts washing
02 Technical dossier
Specifications
2 data points · as published by Nihon Netsugen Systems
- Refrigerant
- CO₂
- Category
- Heat pumps
01Refrigerant
1 entry
- Refrigerant
- CO₂
02Certification & markets
1 entry
- Region
- Africa, Asia, Australia & NZ, China, Europe, Japan, North America, South America
Talk to Nihon Netsugen Systems about the Super Heat Industrial CO₂ Heat Pump.
Send your enquiry to Nihon Netsugen Systems — ask for specifications, pricing and availability for your project.
