Henry Group

Oil Separators & Reservoirs

Name: Oil Separators & Reservoirs
Brand: Henry Group

Henry Group offers an extensive range of Oil Management Systems, suitable for use with sub and transcritical CO₂ up to 130 Barg, propane up to 48 Barg and ammonia up to 31 Barg.

Henry Group

Company profile

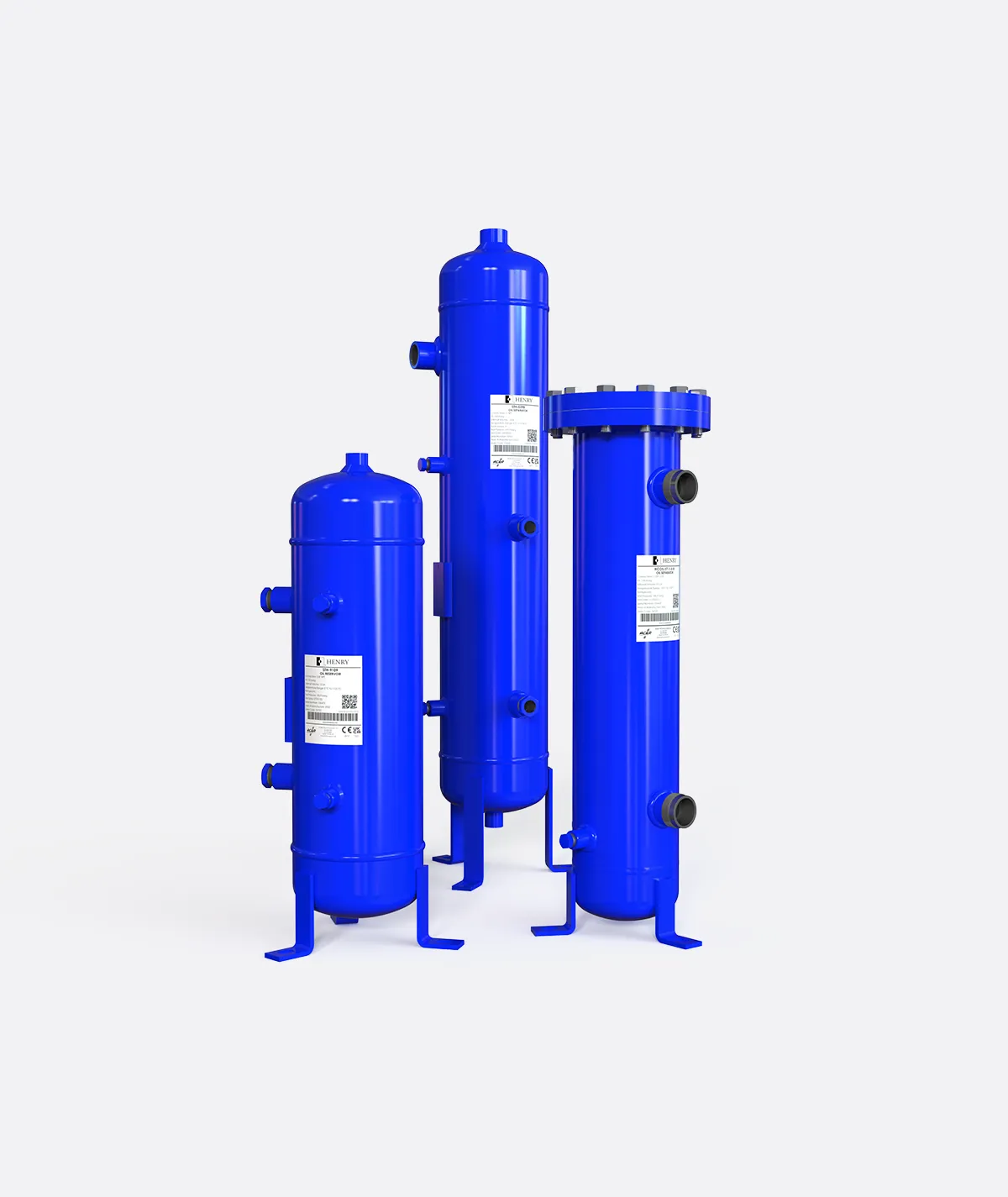

Fig. 01 — Oil Separators and Reservoirs

01 Overview

Henry offers a broad range of high efficiency Oil Separators for use with sub and transcritical CO₂, propane and ammonia. Our STH models are hermetic, combining the high efficiency centrifugal-based oil separation of our Helical design with entirely maintenance free operation, eliminating the need for consideration to service access. While our HCOS coalescing, models offer filtration-based oil separation with the facility to replace filters as and when required.

Features

Separator/Separator-Reservoir
High oil separation efficiency – up to 97%
Consistent low-pressure drop
No clogging elements because of too much oil in the system
No oil blow-out at start up from oil left in a coalescing element
Maintenance free
Oil level sensor port
Oil Reservoir
Two sizes available, 6.0 litres and 11.0 litres
Clear sight glasses
Oil level sensor port

02 Technical dossier

Specifications

6 data points · as published by Henry Group

Refrigerant: Ammonia, CO₂, R290
Category: Components

01Operating limits

2 entries

Max Working Pressure: R717: 31 barg (450 psig)Propane: 48 barg (700 psig)CO₂: 130 (1885 psig)
Operating Temperature Range: R717 and Propane: -10 °C to +130 °C (+14 °F to +266 °F)CO₂: 0 °C to +150 °C (+32 °F to +302 °F)
