TEKO

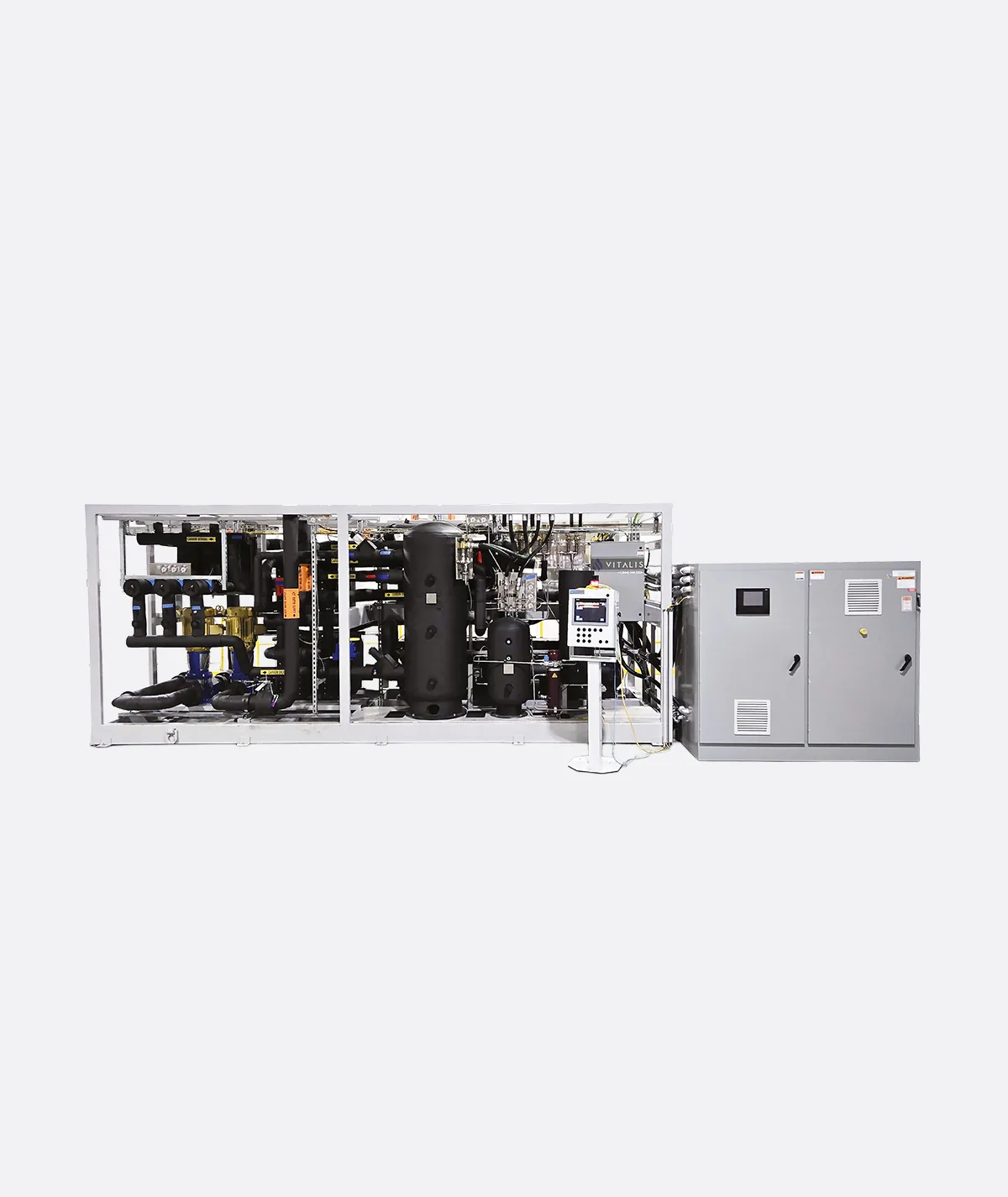

COOLSHIFT XL
CO₂ chillers & heat pumps for air conditioning, heating, or process cooling.
01 Overview
The right solution for buildings, industry, logistics, data centers, or local and district heating systems.
01
Coolshift xl
- CO2 Chillers & Heat Pumps
- Cooling up to 1.5 MW / Heating up to 2 MW kW
02
Application
- Building air conditioning & heating
- Industrial cooling
- Process cooling & heating (e.g. breweries, wine production)
- Data centers / server cooling
- Local & district heating networks
03
Details
CO₂ chiller
air- or water-cooledCO₂ heat pump
air/water, water/water or air/air- Low-pressure ejectors
- Low-pressure oil system with refrigerant separator
- High-efficiency compressors (optional LSPM)
- Capacity control via inverter or cylinder cut-off
- Brazed plate heat exchangers
- Refrigerant receiver
- Active oil management (optional)
- Heat recovery (optional)
- Weather & noise protection housing (optional)
Control system
Wurm / Carel
04
Performance & Efficiency
- Simultaneous cooling & heating
- Up to 8 bar ejector lift – reduced compressor power consumption
- High supply temperatures in heat pump operation up to 90 °C
- Maximum efficiency at low return water temperatures
- Climate- & environmentally friendly
- Cooling capacity max.1.5 MW
- Heating capacity max. 2 MW
05
Design Pressure
- 90 bar Low Pressure
- 130 bar High Pressure
02 Technical dossier
Specifications
2 data points · as published by TEKO
- Refrigerant
- CO₂
- Category
- Heat pumps
01Refrigerant
1 entry
- Refrigerant
- CO₂
02Certification & markets
1 entry
- Region
- Africa, Asia, Australia & NZ, Europe, North America, South America
Talk to TEKO about the COOLSHIFT XL.
Send your enquiry to TEKO — ask for specifications, pricing and availability for your project.
