Discharge line mufflers SCY-P6/P14

Name: Discharge line mufflers SCY-P6/P14
Brand: Carly

Reduction of noise caused by gas pulses in the discharge lines of refrigerating and air conditioning installations, running with high working pressures.

Esta página de producto aún no está disponible en español: se muestra el original en inglés.

Carly

Perfil de empresa

01 / 02

01 Resumen

Those pulses generally come from reciprocating compressors or screw compressors. The mufflers have no effect on the mechanical vibrations transmitted to the pipes by the compressors.

Carly Discharge line mufflers SCY-P6/P14 have

Maximal working pressure
64 bar or 140 bar with CO₂ in transcritical compression systems.
Design allows coverage of a wide range of frequencies.
Discharge line muffler mounting is possible in vertical and horizontal positions. There is no oil trap whichever the position. The refrigerant can flow in both directions.
Excellent distribution of the refrigerant in its gaseous phase, with minimum pressure drop.

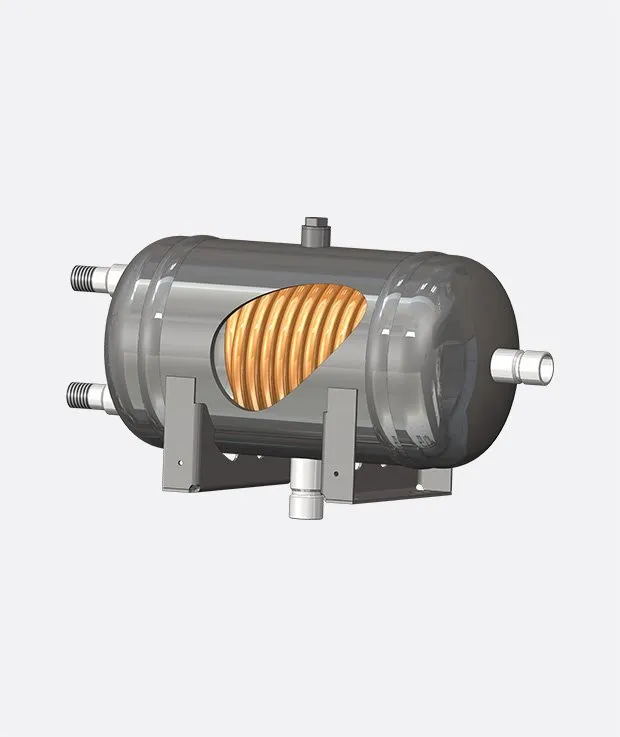

Discharge line mufflers SCY-P6/P14 — vista 2

Carly Discharge line mufflers SCY-P6/P14 Functional features

Products are compatible with CO₂ as well as with its associated oils and additives. Products are designed for use of non-hazardous refrigerants from group 2 of PED 2014/68/EU.
Product classification in CE categories is performed using the PED 2014/68/EU table, corresponding to a volume-based selection.
Hermetically sealed outer steel enclosure with paint to ensure a high resistance to corrosion.
Connections on standard products
to solder ODF

Carly SCY-P6 / 64 bar (928 psig) and SCY-P14 / 140 bar (2030 psig) Brochure
