ECO2LARGE

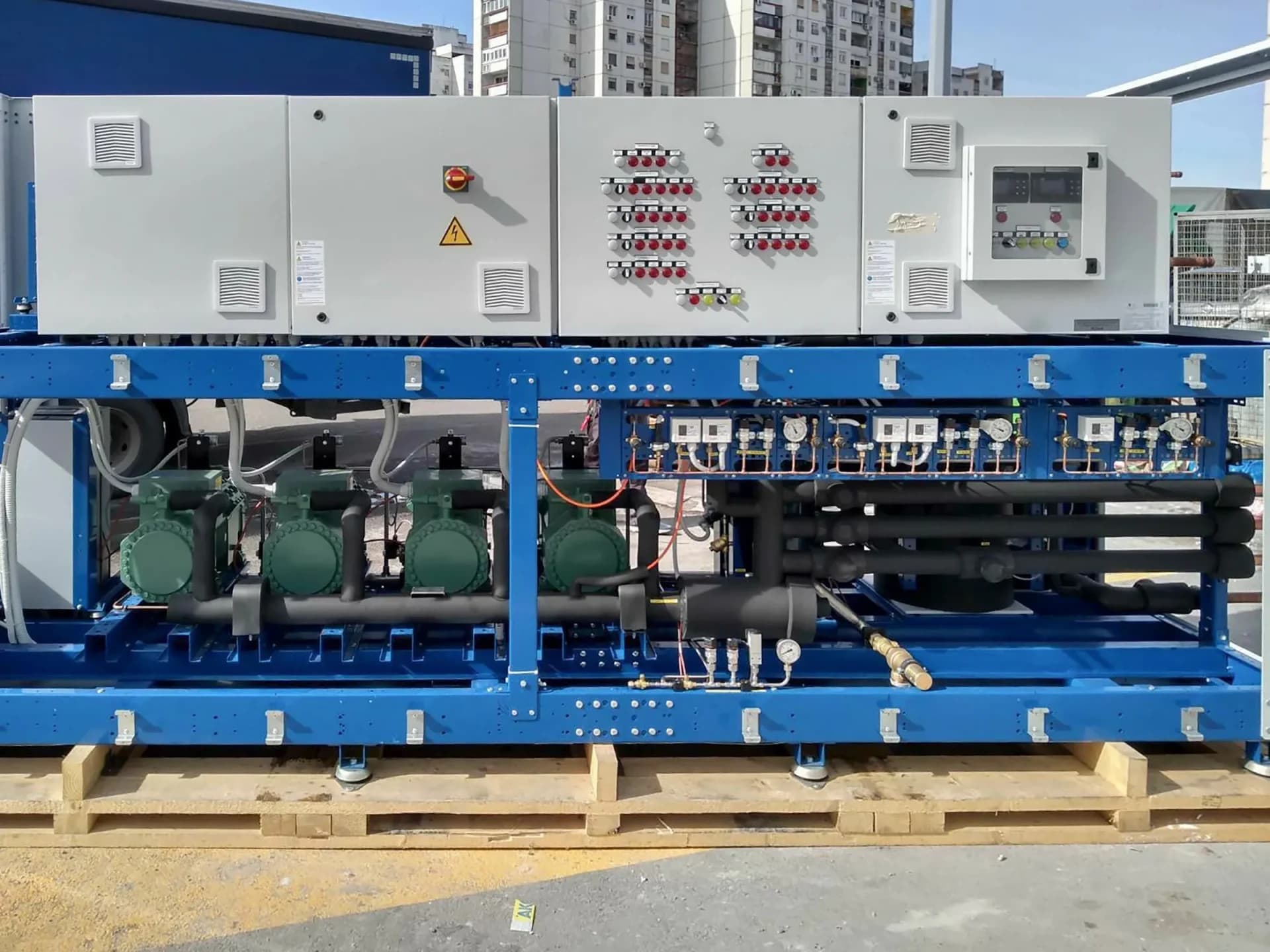

The Epta ECO₂LARGE is a standardized refrigeration power pack for medium to large applications in retail and industrial field. The core of the unit are the semi hermetic Bitzer compressors which can be modified to the application demand in terms of power and quantity. The refrigeration power is adjustable from 80kW to 250kW cooling capacity for medium temperature and between 24kW to 50kW in low temperature applications. The product itself is a highly standardized unit with the possibility to select different types of options, like the patented FTE2.0 and ETE systems, but also standard options like heat recovery and backup units.

For special applications, the Epta ECO₂LARGE can be modified from our experienced engineers to fit to any kind of cooling capacity and application, even when the option or the cooling capacity is out of the standard range.

The final dimensions of the pack are very much depending on the selected compressor quantities and the options. The standard frame which is also available with weather and sound protection is 4.2m lengths and 2.2m heights with a depths of 1.2m.
